Product Details
The whole set of products includes: water inlet pipe*8M, shapeable pipe (default 40cm)*4 pieces,

Brass Nozzle*4, Spray Base*1, Ball Valve Switch*1,

Faucet connector*1, Spare nozzle*2
Packing size: inner box 21*21*6cm, outer box size 45*45*46cm,
Net weight of the whole set of products: 0.49Kg

1. It is recommended to install the atomization system at a height of 2.5m-3m.
2. Connect the adapter to the faucet.
3. Turn on the faucet to clean the system for 1 minute to clean the system and remove impurities.
4. Screw the spray nozzle onto the tee fitting, except for the extreme end elbow.
5. Turn on the faucet to wash the system for 2 minutes to ensure the system is completely clean.
6. Turn off the water and install the elbow to the very end of the system.
7. Fix the atomizing pipe with the provided cable ties and saddle clips.
8. Turn on the faucet until the sprayer works and enjoy the cooling misting system.
9. When the atomizing system is not used for a long time, please turn off the nozzle and keep it dry and clean.
The fine atomizing nozzle uses a brass main body with stainless steel core guide vanes inside. The liquid forms a centrifugal vortex in the guide vanes, and fine hollow mist particles are sprayed from the nozzle holes, which can be widely used in plant humidification, Artificial fog such as cooling, disinfection, dust reduction, landscaping, smoke test, etc. This nozzle nozzle is punched by American precision punching machine, the hole diameter is 0.3mm, it is well-made, and the cost of use is more than 10 times lower than that of gas humidification. .
This series of nozzles does not require air assistance, the system is simple, the spray point is fine, the atomization is sufficient, energy saving and water saving, low cost, and good effect; 2.5 times the life of similar nozzles.
This nozzle can be fully atomized by the pressure of tap water, and the atomization effect is better if the high-pressure water pump is used.

【Product application range】
1. Wetting and derusting 2. Air humidification 3. Chemical treatment 4. Chemical spraying 5. Liquid spraying 6. Tobacco leaf humidification 7. Tablet coating 8. Flue gas evaporative cooling 9. Sterilization 10. Component cooling 11. Fruit spray Wax 12, tile glazing 13, workshop humidification 14, smoke test 15, artificial fog 16, humidification in other places, etc.

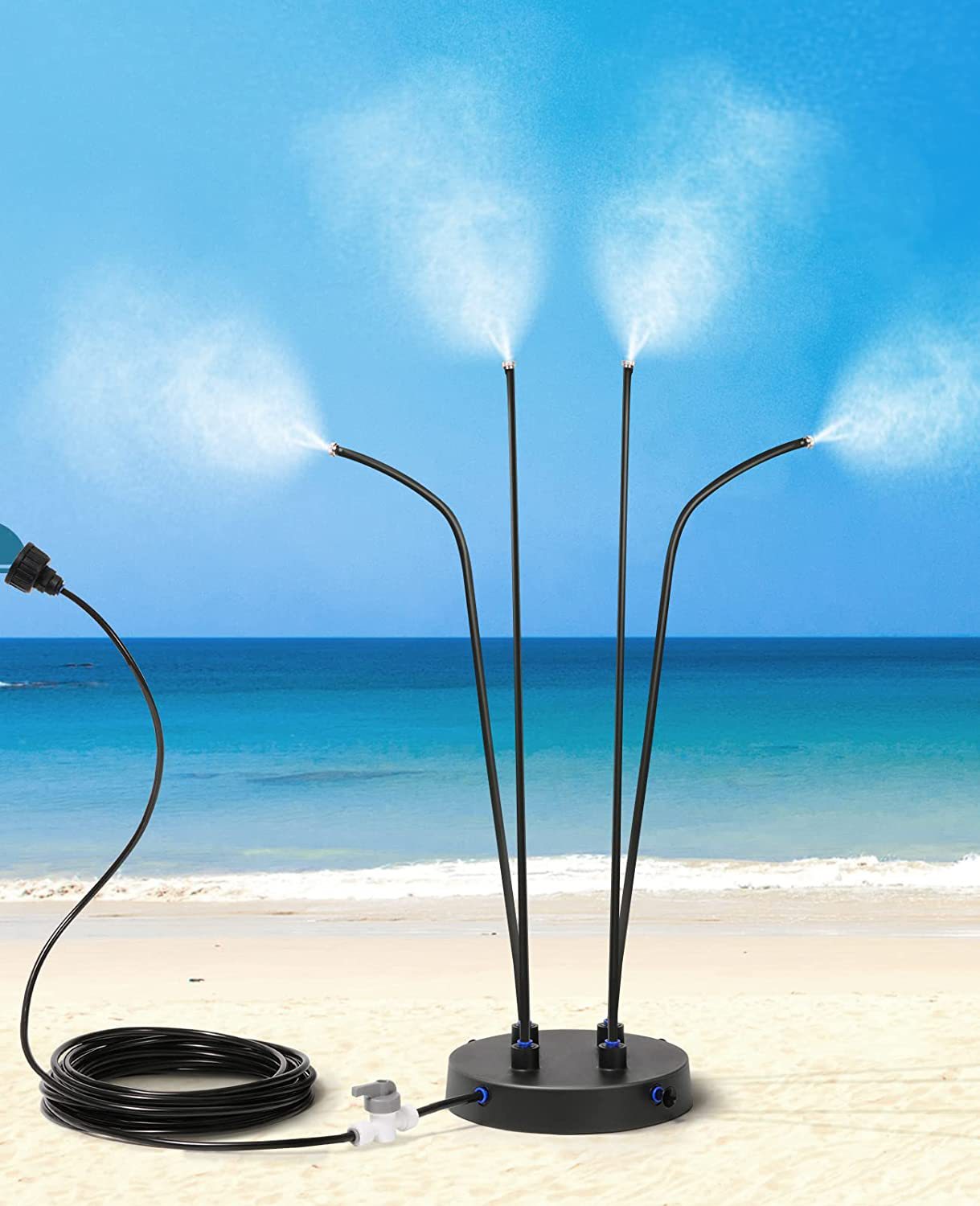

Whether you feel very hot in summer, come and try this outdoor terrace vertical spray, suitable for pets, children, and all kinds of groups, to achieve high-quality cooling effect, bring a touch of freshness to your summer! It is also the perfect choice for gift giving! !
